Transfer Point Dust Control Systems
High-pressure misting solutions for conveyor transfers & material handling.
Conveyor & Transfer Point Control
Overview
Transfer points are some of the highest-dust-producing zones in mining, quarrying, aggregate handling, fertilizers, grain, cement, and manufacturing. When material moves from one conveyor to another, or falls through a chute, large amounts of dust become airborne — often well into the PM10 range.
High-pressure misting is the most effective method to capture dust at the source, improving air quality, protecting workers, and extending equipment life.
Our systems are engineered to:
- Prevent dust migration across the plant
- Improve visibility and worker safety
- Reduce dust fallout and surface contamination
- Protect electrical equipment and bearings
- Minimise dust inhalation and health risks
How the system works

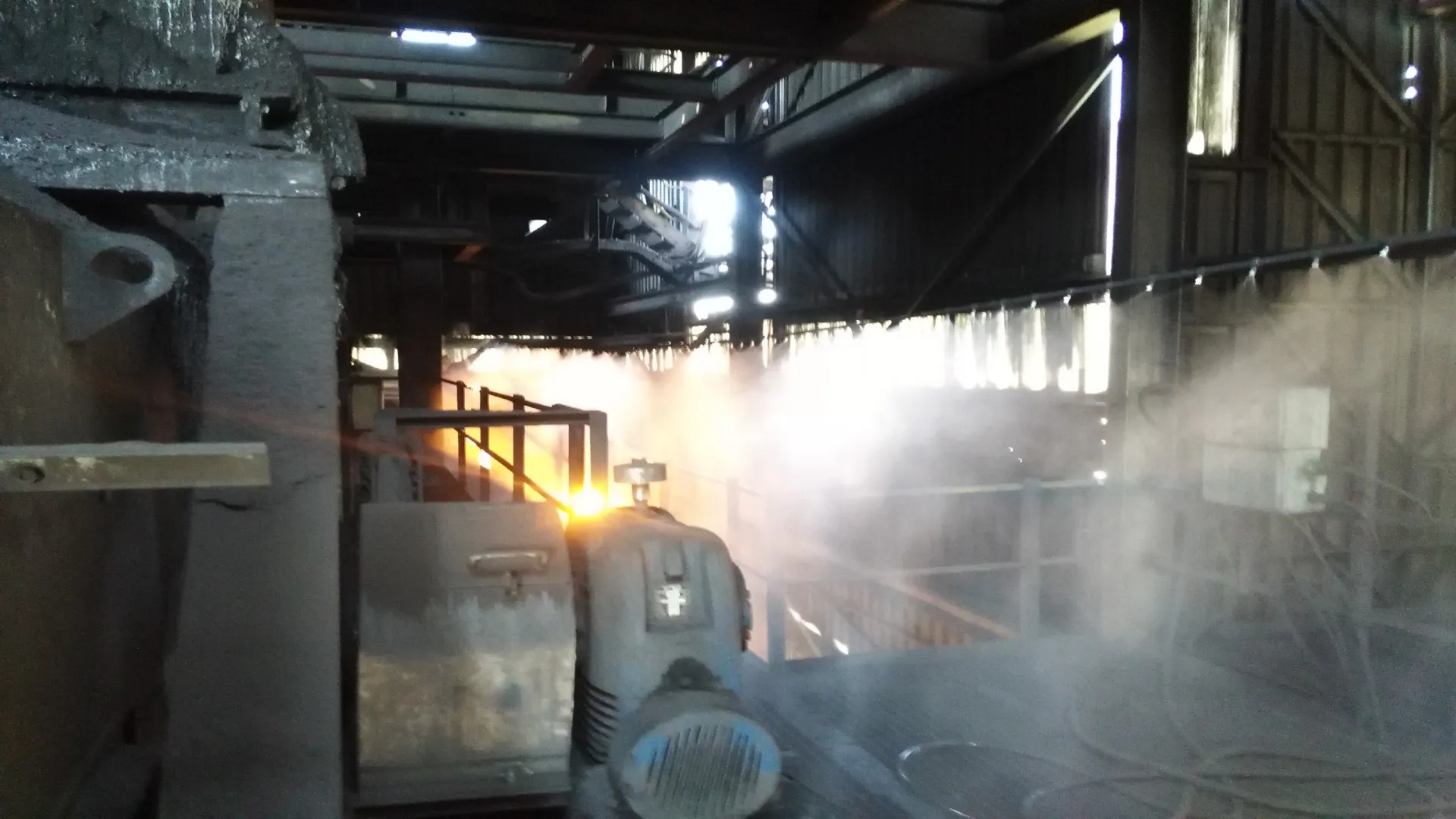

At transfer points, material free-falls or impacts, causing micro-dust to disperse. A high-pressure fog curtain is placed around the transfer chutes, creating a dense fog barrier. The ultra-fine droplets (5–80 microns):
- Remain suspended longer
- Collide with airborne dust particles
- Increase dust mass
- Drop the dust back into the material flow
This method captures both coarse dust and respirable PM10 particles, significantly reducing exposure.
System components
High-pressure pump station
- Operating pressure
- 70–100 bar
- Flow rates
- Up to 50 LPM
- Build
- Stainless steel manifolds, pressure regulation & industrial safety valves
- Designed for
- Harsh mining and processing environments
Fog curtain nozzle lines
- Material
- Stainless steel
- Length
- Custom per transfer point
- Spacing
- Engineered for dust load & airflow
- Nozzle sizes
- 0.2 mm to 1.0 mm
Precision nozzles
- Droplet sizes
- 5–80 microns
- Features
- Anti-drip valves; designed for PM10 capture
Auto-flush filtration
- Operation
- Automatic self-cleaning
- Function
- Removes sediment and particulates; protects pumps and nozzles; ensures consistent droplet size
- Suitability
- Continuous industrial use
Where transfer point systems are used
- Conveyor belt loading and discharge points
- Drop chutes
- Crusher to conveyor transitions
- Screening plant transfer decks
- Grain and fertilizer conveyor transfers
- Coal, iron ore, silica, aggregates
- Wood chips and sawdust handling
- Conveyor junctions inside processing plants
Benefits of transfer point fogging
- Control of respirable PM10 and PM2.5
- Reduces health risks for workers
- Lowers dust carry-over into other zones
- Prevents electrical and mechanical damage
- Low water usage (high-pressure systems are efficient)
- Minimal mud creation compared to low-pressure systems
- Improves plant cleanliness
- Extends conveyor belt lifespan
- Easy to integrate with existing conveyors
Why high-pressure systems outperform low-pressure
- Ultra-fine droplets stay airborne longer
- Better dust binding efficiency
- No wetting of conveyor belts or motors
- Effective for fine dust, not just coarse dust
- Lower total water consumption
- More durable in harsh environments
Why choose Misting SA
- Over 20 years of industrial dust control experience
- Reliable and field-proven equipment
- Modular systems compatible with any conveyor layout
- Fast turnaround and support across Africa
- In-house expertise for heavy-dust environments
- Solutions installed across mining, agriculture, and material handling
Need engineered dust control for your transfer points?
Send us photos and basic measurements of your conveyor transitions — our team will design the correct fog curtain system for your layout.
