Dust Suppression for Processing Plants
High-pressure fog/dust curtains and dust blasters engineered for crushers, screens, sorting lines, recycling plants, and heavy industrial environments.
Plant-Wide Dust Control
Introduction
Processing plants are high-activity zones where material is constantly breaking, dropping, crushing, transferring, or colliding — all of which create fine, airborne dust. This dust spreads rapidly through work areas, settles on equipment, and becomes a serious safety, health, and compliance risk.
Misting SA designs high-pressure dust suppression systems specifically for these demanding environments, ensuring dust is captured instantly and kept under control throughout the production process.
Why dust control is critical in processing plants
Workplace safety
Dust reduces visibility around crushers, screens, and conveyor chutes — increasing accident risk.
Health & compliance
Fine particles (PM10 / PM2.5) cause respiratory illness and must be controlled to meet regulatory limits.
Equipment protection
Dust accelerates bearing failures, motor overheating, electrical faults, clogged filters and sensors. A clean plant runs longer, safer, more efficiently.
Production efficiency
Less dust = fewer stoppages, lower maintenance, cleaner products, stable throughput.
How our systems work
Processing plants create different types of dust, so each zone requires a specific suppression method. Misting SA uses ultra-fine high-pressure mist to bind airborne particles at the exact moment they are released.
Fog/dust curtains (localised control)
Installed around crushers, screens, transfer points, hoppers, chutes and sorting stations. These systems form a "mist barrier" that captures dust before it escapes.

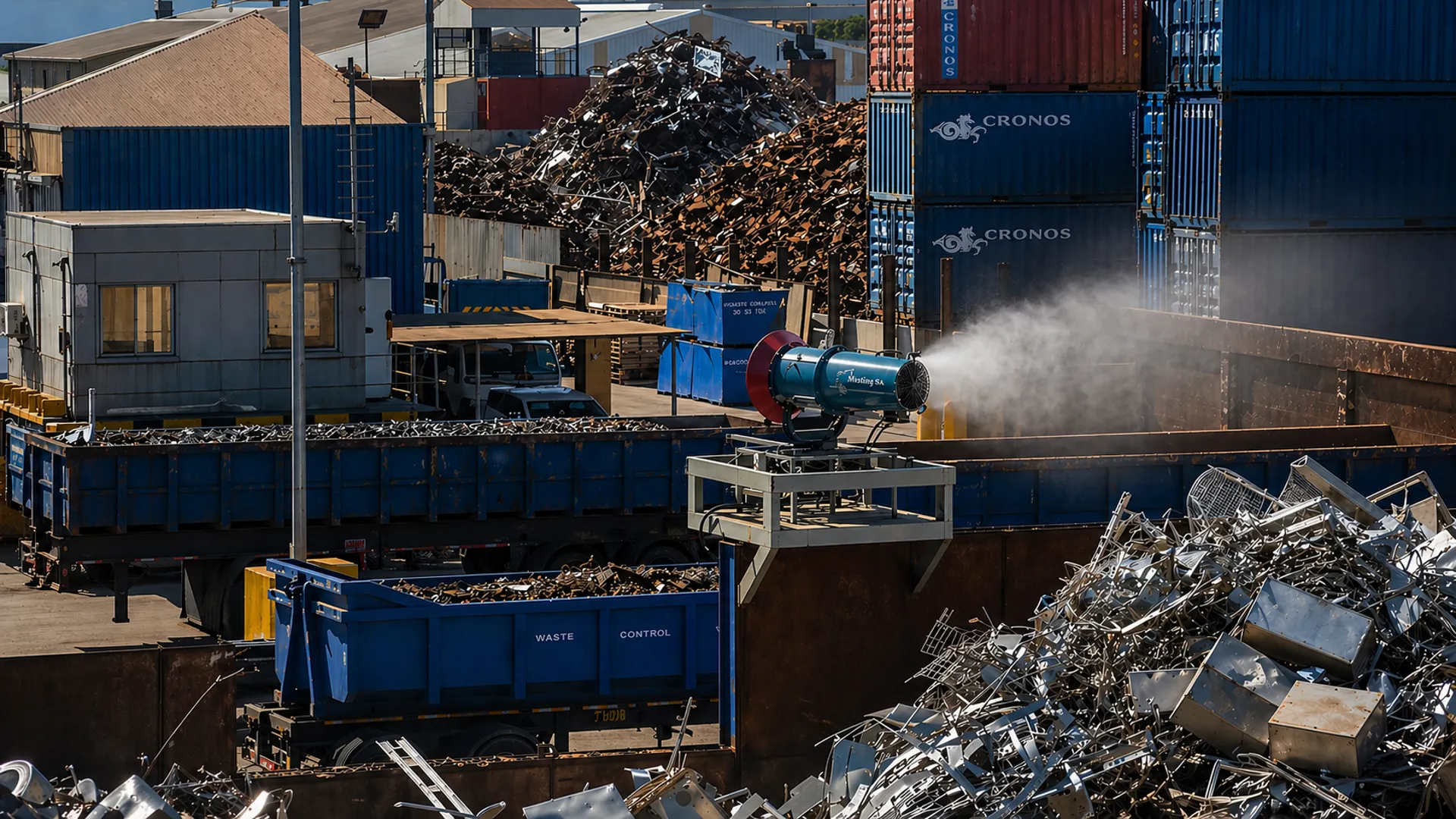

Dust blasters (extended-reach control)
Used for large open processing floors, outdoor plant sections, and multiple-generation dust sources. Dust Blasters project fine droplets over 25–110 m, ideal for larger plant areas.
Ultra-fine droplets (5–25 microns)
Matched to dust particle sizes for maximum collision efficiency — without wetting material or machinery.
High-pressure pump stations (70–100 bar)
Engineered for industrial duty cycles and equipped with auto-flush filtration, stainless steel fittings, stable pressure regulation, and automation options.
Equipment options for processing plants
1. Fog/dust curtain systems
Stainless steel mist lines · custom spacing for nozzles up to 1.0 mm · ideal for enclosed or semi-enclosed plant zones.
2. Dust Blasters
25–110 m throw distance · 90–330° oscillation · adjustable tilt · trailer or skid-mounted options.
3. High-pressure pump stations
5–50 LPM depending on plant size · 70–100 bar · auto-flush filtration included.
4. Optional controls
Timers · remote activation · PLC interfacing (if required) · zone-based start/stop.
Benefits of Misting SA systems
- Captures dust at the source
- Prevents dust escaping into adjacent zones
- Reduces downtime from cleaning and maintenance
- Minimises wear on motors, bearings, screens, and belts
- Improves plant visibility and safety
- Supports compliance with occupational health standards
- Uses less water than traditional low-pressure systems
Ideal industries
- Crushing & screening plants
- Mining plants
- Foundries
- Recycling facilities
- Paper & pulp processing
- Wood processing
- Fertilizer plants
- Animal feed plants
- Cement and aggregate plants
- Brick and block manufacturing
To design a complete solution for your processing plant, send us:
Photos of dust-generating areas · approximate layout or flow direction · distance to water and power.
